AVCHD - encoding the new way

2010-7-9
Video Compression - Size vs. Quality
All the tests are done with Handbrake.
For more info see the Shrink you video files post.
Let us see how we can get the smallest file size with the quality you want.

I did some testing with several blue ray disks.
RF 28 did show some slight problems with compression artifacts in dark areas RF 25 has less.



The Die Hard 132 minutes long movie
with RF 28 @ 482 Kbps  encoded and Dolby Pro Logic II @ 160 Kbps resulted for the 720p version in a tiny 611 Mb file. Acceptable quality and a 2 hour 720p movie on a CD size - I am impressed.
As always, click on the pictures for the full size screen grabs.


the back of the dark suit is where the compression artifacts did show a bit


in this bright scene every thing looks good to my eye

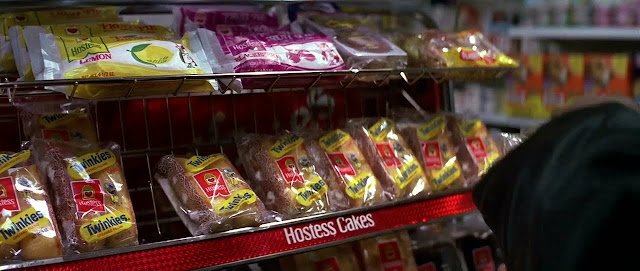

with RF 25 @ 750 Kbps encoded and Dolby Pro Logic II @ 160 Kbps resulted for the 720p version in a still tiny 865 Mb file.

a bit less visible



with RF 20 @ 2046 Kbps encoded and Dolby Pro Logic II @ 160 Kbps resulted for the 720p version in a 2040 Mb file.


still not gone completely





Overview Compression, Size and Time
Audio 2=Dolby II @ 160 - 6=6 Channel @ 384 - 6p=6 Channel AC3 Passthru
nt = not tested

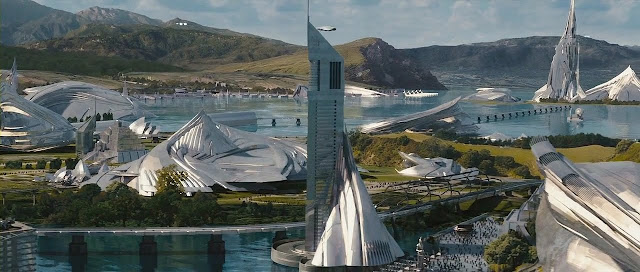

the first 60 seconds from Serenity @ 720
RF - MB - sec - Audio - Profile - Comments
20 - 25.1 - nt - 6+6p - high
20 - 23.5 - 195 - 2+6p - high
20 - 21.8 - 195 - 6 - high
20 - 20.2 - nt - 2 - high

20 - 19.5 - 105 - 2 - normal

21 - 17.4 - nt - 2 - high

22 - 14.9 - nt - 2 - high

23 - 14.4 - 177 - 6 - high
23 - 13.9 - 158 - 6 - normal
23 - 12.8 - nt - 2 - high

23 - 12.2 - 95 - 2 - normal

24 - 11.0 - nt - 2 - high

25 - 12.8 - 164 - 2+6p - high
25 - 11.1 - 164 - 6 - high
25 - 10.8 - 94 - 6 - normal
25 - 9.5 - nt - 2 - high

25 - 9.1 - 90 - 2 - normal

26 - 8.3 - nt - 2 - high

27 - 7.3 - nt - 2 - high

28 - 6.5 - nt - 2 - high

29 - 5.9 - nt - 2 - high

30 - 5.3 - nt - 2 - high


the first 60 seconds from the 6th day @ 1080
the 1080 screen shots are cropped because Blogger has a maximum image size of 1600

RF - MB - sec - Audio - Profile - Comments
23 - 15.3 - 285 - 6 - high - 1080

23 - 12.0 - 140 - 6 - normal - 1080

23 - 8.4 - 170 - 6 - high - resized to 720

23 - 6.1 - 81 - 2 - normal - resized to 720

With this work I have done, it should be pretty easy now for you to have an idea what compression to choose.
